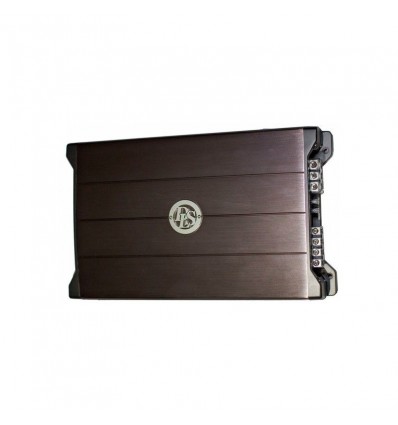

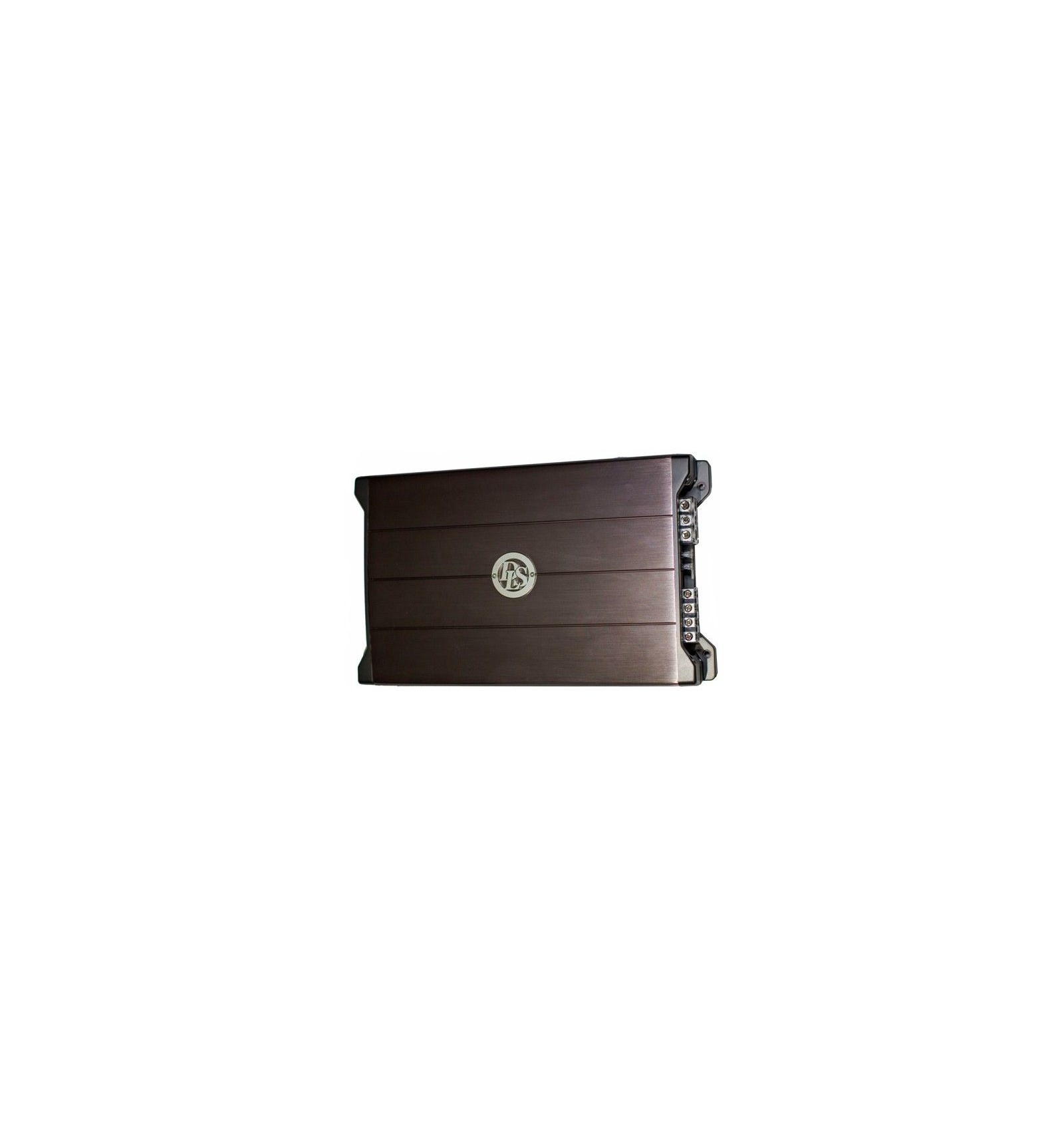

DLS P40 amplificator pe 4 canale

DLS P40 este un amplificator de dimensiuni reduse dar puternic, are 4x150w si poate fi folosit si pe 2 canale 2x200w

- Built-in/switchable low pass and high pass filters.
- Bass EQ @ 50 Hz: + 6dB / + 12 dB.
- Built-in protection circuits shut down the amplifier in the event of overloads.
- Hi level input with Auto start
Use it for a front system and a subwoofer.

SQ tuned in England!

    Specifications
Number of channels    4
Amplifier class    AB
Peak power    4 x 150 Watt
Output power in 2 ohm    4 x 100 Watt
Output power in 4 ohm    4 x 70 Watt
Mono bridge mode 4 ohm    2 x 200 Watt
Damping factor    >80
S/N ratio, A-weighted    >90 dB
Frequency range    10 Hz - 30 kHz
Input sensitivity    0,25 - 5 Volt
Input impedance    22 kohm
Input impedance, high level    47 ohm
High level input with auto start    Yes
Remote bass level control    No
Low level output    No
Remote phase shift control    No
Grand bass filter    Bass EQ @ 50 Hz: +6db / +12 dB
Power consumption (idle)    0,5 A
Power consumption (max)    50 A
Rec. power cable    16 sq mm ( 5 AWG)
Fuses    2 x 25 A
Dimension (W x D x H)    189 x 322 x 46 mm (7,44" x 12,67" x 1,81")
Weight    3 kg
