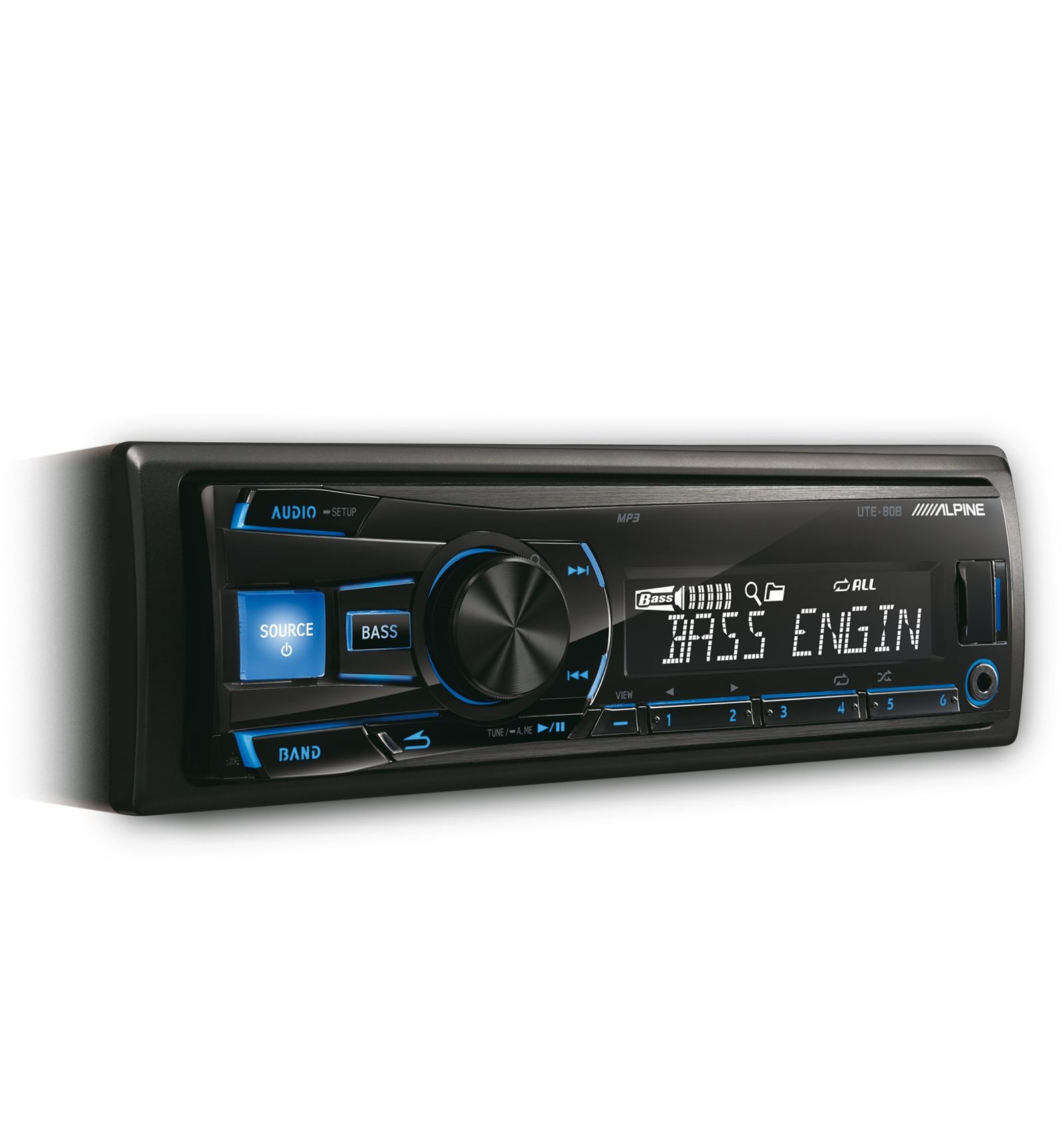

Alpine UTE-80B



Radio

• Memory Presets: Preset Stations (FM:18, MW:6, LW:6)
• Memory: Auto Memory
• Seek Mode: Local/DX Selection

USB

• USB Connection: Front USB Connection with 1000mA charging support and Phone charging
• Music Playback: MP3
• USB Class: Mass Storage Class
• File/Folder Name Search
• Percentage Search
• Folder Up/Down
• M.I.X. Random Play: Files in a folder, All
• Repeat

Reglare sunet

• BassEngine SQ
• Default Equalizer setup
• Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classic
• 3-band Parametric Equalizer
• Factory EQ: 10 types
• Tone control: Bass/Mid/Treble
• Loudness
• Source Tone Memory

General

• Power Output: 4 x 50W High Power Amplifier
• Display LCD: 13 Segments White LCD Display 1Line
• Control Type: Rotary Encoder Knob
• Blue Illumination Buttons
• AUX-In: Front AUX Input (3.5mm mini jack)
• Menu Language: English, German, French, Italian, Spanish, Dutch, Russian
• Detachable Face Plate
• Detachable DIN Trim Plate
• Dimmer
• Power Antenna Lead Output
• Face Color: Black

Putere maxima

• Max Power Output: 4 x 50W

FM Tuner

• Tuning Range: 87.5 - 108.0 MHz
• Mono Usable Sensitivity: 9.3 dBf (0.8 μV / 75 ohms)
• Alternate Channel Selectivity: 80 dB
• Signal-to-Noise Ratio: 65 dB
• Stereo Separation: 35 dB
• Capture Ratio: 2 dB

MW Tuner

• Tuning Range: 531 - 1,602 kHz
• Usable Sensitivity (IEC Standard): 22.5μV / 27.0dB

USB

• USB Requirements: USB 1.1/2.0
• Max. Power Consumption: 1,000 mA
• USB Class: Mass Storage Class
• File System: FAT 12/16/32
• MP3 Decoding: MPEG Audio Layer-3
• Number of Channels: 2-Channel (Stereo)
• Frequency Response: 5 - 20k Hz (±1 dB) *May differ depending on the encoding software and bit rate.
• Total Harmonic Distortion (at 1kHz): 0.008 %
• Dynamic Range (at 1kHz): 95 dB
• Signal-to-Noise Ratio: 105 dB
• Channel Separation (at 1kHz): 85 dB

Reglare sunet

• Bass Level Control Range: -14 to +14 dB
• Bass Center Frequency: 60/80/100/120 Hz
• Bass Bandwidth Adjustment (Q): 4 Choices (0.5=wide, 1.0=medium, 1.5=medium, 2.0=narrow)
• Mid Level Control Range: -14 to +14 dB
• Mid Center Frequency: 500/1k/1.5k/2.5k Hz
• Mid Bandwidth Adjustment (Q): 4 Choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)
• Treble Level Control Range:  -14 to +14 dB
• Treble Center Frequency: 7.5k/10k/12.5k/15k Hz
• Treble Bandwidth Adjustment (Q): 2 Choices (0.75=wide, 1.25=narrow)
• Loudness: 100 Hz 10 dB
• Bass Engine SQ: Level 0 – 6

General

• Power Requirement: 14.4 V.DC (11-16V allowable)
• Aux In: 1.4V / 10k ohms
• Maximum Mounting Angle: 35° from Horizontal
• Weight: 0.9 kg

Dimensiuni

• Din Size: 1 DIN
• Chassis Size (W x H x D) mm: 178 x 50 x 160,5 mm
