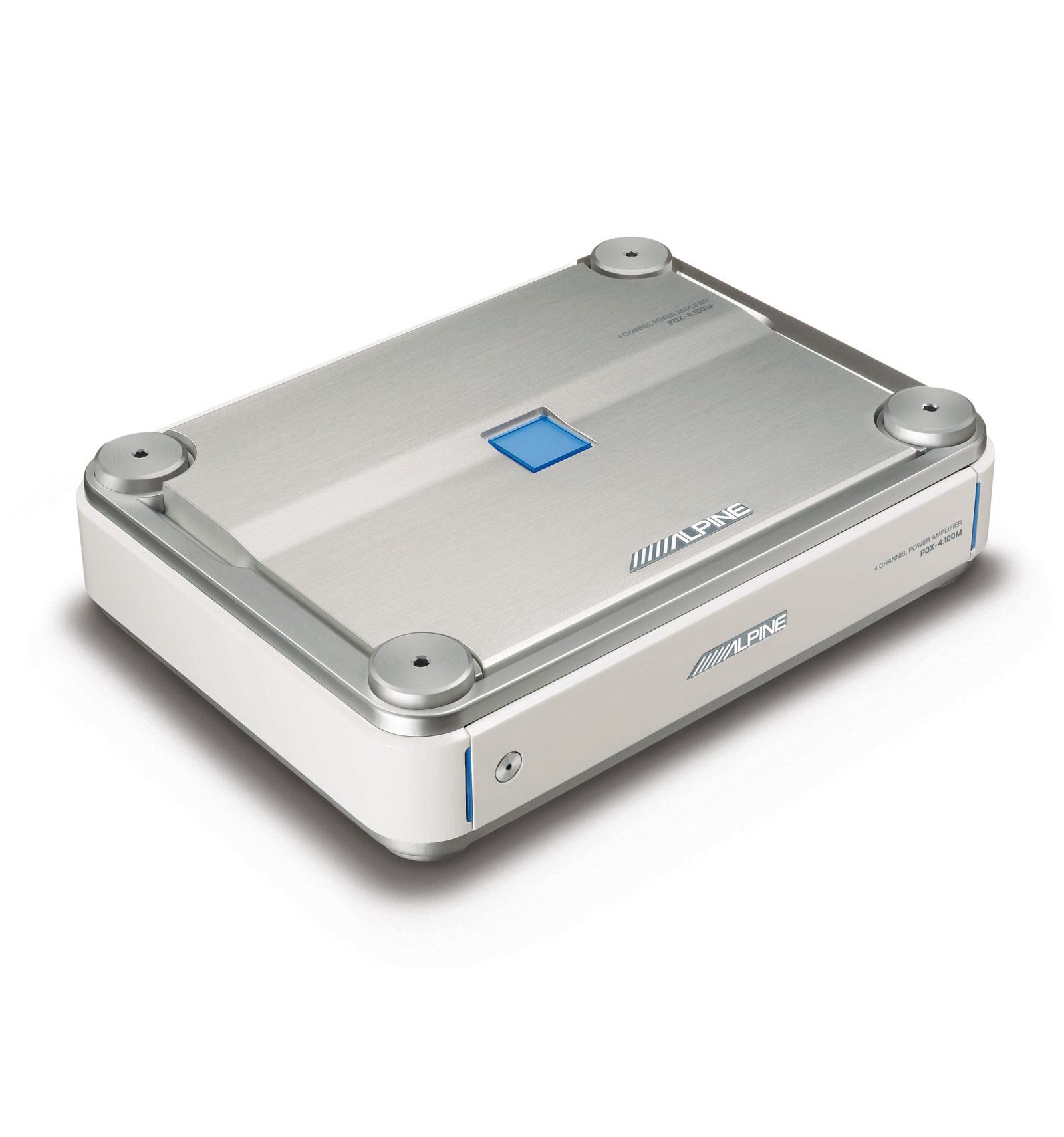

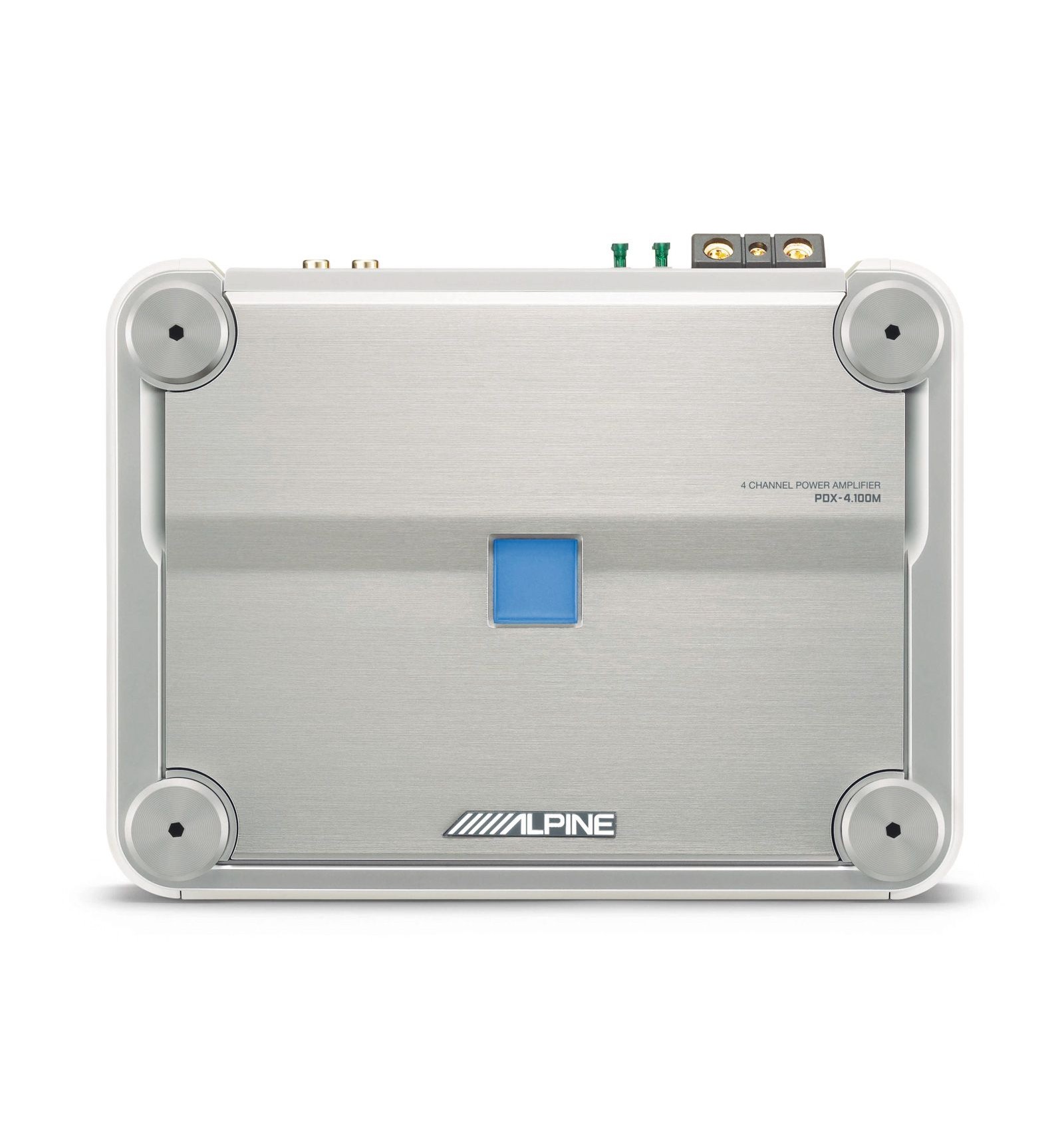

Alpine PDX-4.100M



Caracteristici tehnice:

CEA-2006 Power Ratings

•  CEA-2006 Power Rating: (4/2 I?@14.4V Ƈ%THD+N), S/N 76dBA (Ref. 1W into 4 I?): 100w x 4


RMS Power Ratings

•  Per channel into 4 Ohms: (@14.4V Ƈ%THD+N, 20Hz - 20kHz) 100W x 4
•  Per channel into 2 Ohms: (@14.4V Ƈ%THD+N, 20Hz - 20kHz) 100W x 4
•  Bridged 4 Ohms: Bridged into 4I? (Ƈ%THD+N) 200w x 2


Sound Tuning

•  Crossover: Variable, 30-400Hz (-12dB / oct ), Low-Pass/High-Pass /OFF Selectable


Dimensions

•  Heat Sink (WxHxD) mm: 257mm x 192mm x 62mm
•  Heat Sink (WxHxD) in: 10-1/8'' x 7-9/16'' x 2-7/16''


General

•  Power Requirements: 14.4V DC (11V to 16V)
•  Input Sensitivity: 0.2V to 4.0V (For Rated Power)
•  Frequency Response: 20Hz - 20kHz (+0, -1dB)
•  Speaker Impedance: 4 or 2 I?
•  Signal to Noise: CEA 2006 S/N Ratio (IHF A Weighted, Reference: 1W into 4I?) 76 dBA


FEATURES

Install

•  Connectors: Quick Disconnect Terminals
•  Terminal Layout: One-Sided
•  Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals
•  Mounting Design: Easy Stacking


General

•  Amplifier Type: Class-D (Switch Mode Digital)
•  Channel Design: 4/3/2 Channel
•  Thermal Control: Thermal Management Control
•  Power Supply: Fast Switching, Low Impedance Direct Fets
•  Power Supply Design: DC-DC PWM Power Supply
•  Board Circuitry: STAR Ciruit
•  Current Protection: Auto Over-Current Protection
•  Power Indicator: Top Mounted Blue LED Power/Status Indicator
•  RCA Output: Non-Fading Pre-Amp Output
•  Crossover: Adjustable High Pass, Low Pass
•  Connector Plating: Gold Plated Input, Output, Power and Speaker Terminals
•  Pre-Amp Stage: Discrete
•  Final Outputs: Fast Switching, Low Impedance Direct Fets
•  Board Design: 4-Layer Glass Epoxy PC Board
•  Gain Control: Adjustable
