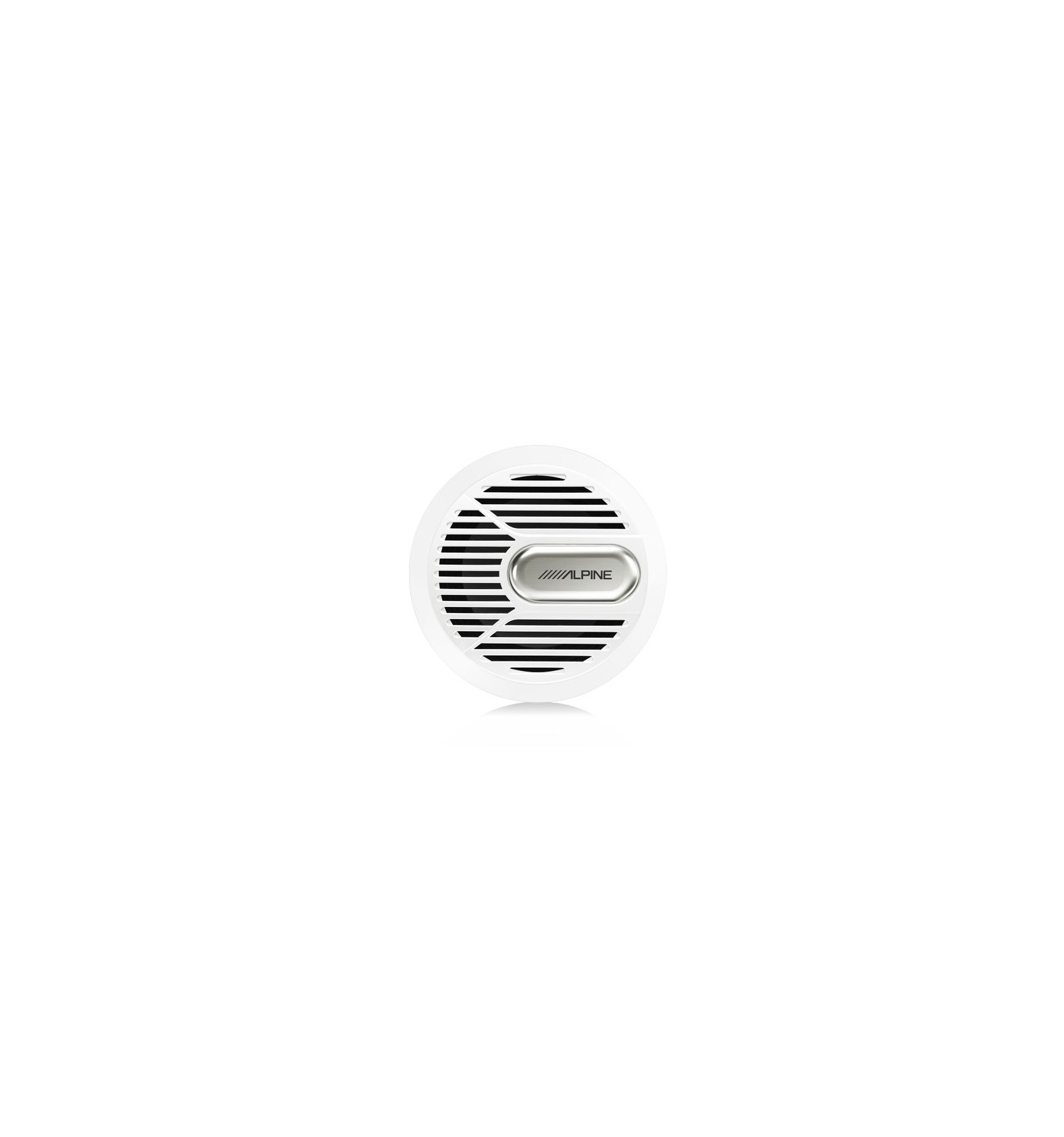

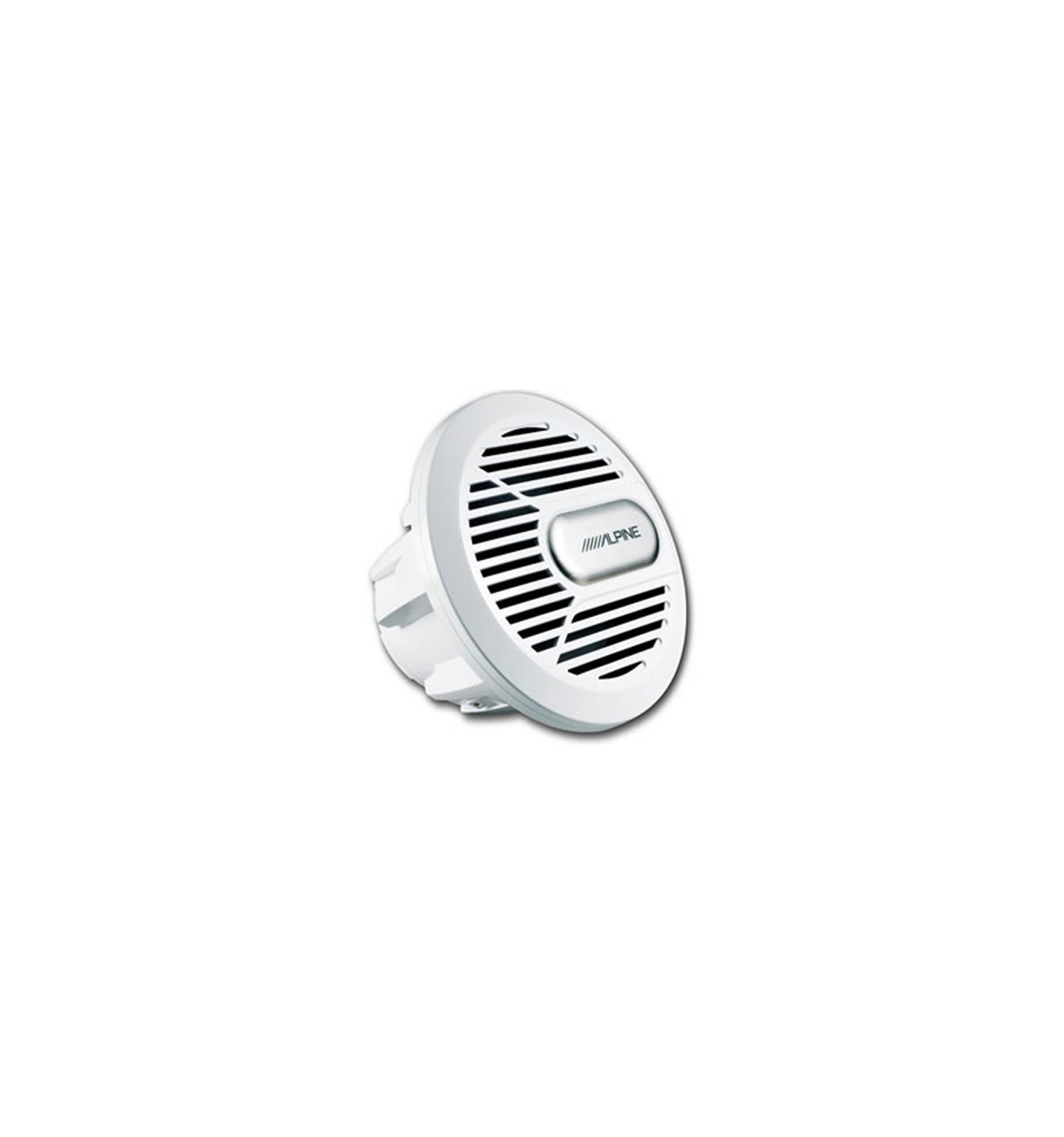

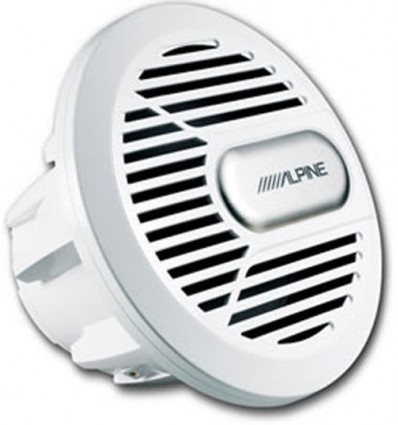

Alpine SWR-M100W



Caracteristici tehnice:

• CEA-2031 Speaker rating: 300W Maximum RMS, 900W Peak Power
• Handling Nominal Impendance 4
• Frequency Response: 35Hz - 700Hz
• Infinite baffle design
• Gold-plated 2-way spade/insert terminals
• 300W RMS/ 900W Peak
• 4Ohm Impedance
• High Excursion for deep, high output bass
• Infinite Baffle Design for widest application
• Custom high-strength polypropylene frame
• High Amplitude Multi-Roll (HAMR) Surround (Pat. Pend)
• CRC Motor Structure (Patented)
• Thermal Management System
• Integrated Insert & Spade Terminals
• Hidden Screw Mounting & Grille Design
• Waterproof Rubber Mounting Gasket Included.
• Gasket Design: Rubber Mounting Gasket
• Tinsel Leads Design: 16ga. Stranded Leads, Insulated
• Terminals Design: 2-Way, Insert & Quick-Connect Terminals Layout: One Side
• Frame
• Design: Custom High Strength 5-Leg
• Material: Injection Molded Polypropylene
• Motor Structure
• Configuration: Airflow Management System
• Pole Geometry: Compound Radius Curve
• Voice Coil
• Design: 4-Layer Single Voice Coil
• Material: High Temp. Copper Wire on TIL Former
• Spider
• Design: Progressive
• Material: Nomex®
• Surround
• Design: High Amplitude Multi-Roll
• Material: Injection Molded Sanoprene®
• Diaphram
• Design: 2-Piece Structural Parabolic
• Material: Molded Polypropylene


Dimensions

• Added Volume: 0.055 cu. ft. (Reverse Mount, Magnet Out)
• Displacement: 0.083ft cu. ft. (Front Mount)
• Mounting Diameter: 229 mm (9-1/32^^)
• Mounting Depth: 144.72 mm (5-11/16^^)


Power Handling

• Peak Power Handling: 900 Watts
• RMS Power Handling: 300 Watts
• CEA-2006 Power Rating: 300 Watts
